3D Printing Conformal Cooling Solution

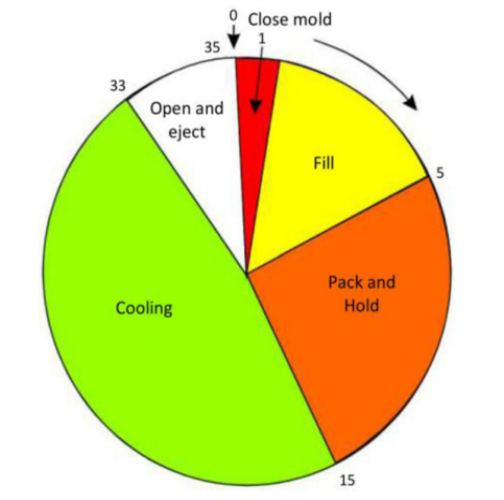

Cooling accounts for more than 60% of the injection cycle and has important influence on injection efficiency.

The temperature uniformity in the process has an important influence on the product size precision and warping deformation.

Improving cooling is a prerequisite for high efficiency and precision injection molding.

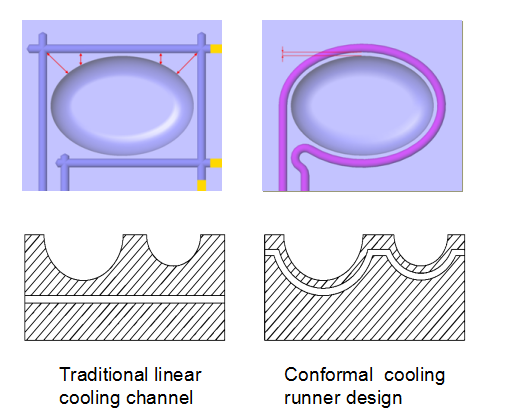

2.Conformal cooling - optimal mold cooling design

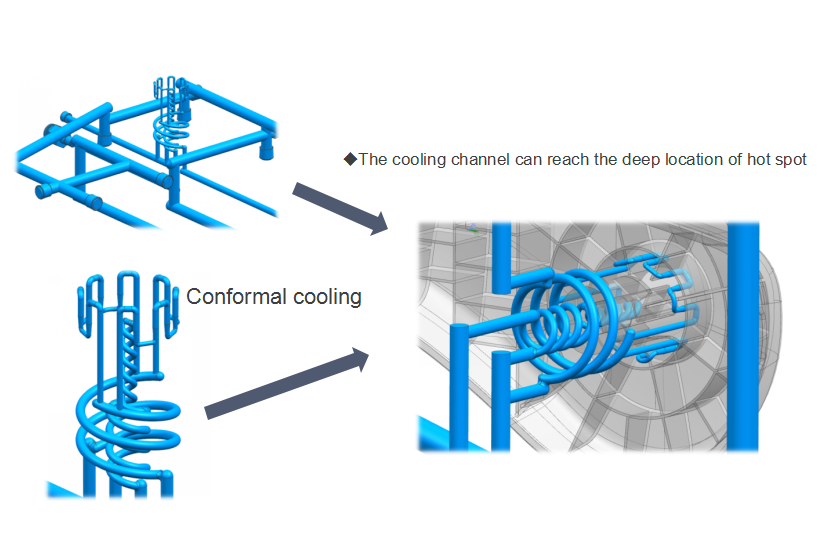

1.) The shape of the cooling channel changes according to the product contour.

2). The water channel is consistent with the surface distance of the mold cavity, effectively improving the cooling uniformity.

3). The mold has no cooling hot spots, which can effectively improve cooling efficiency and reduce cooling time.

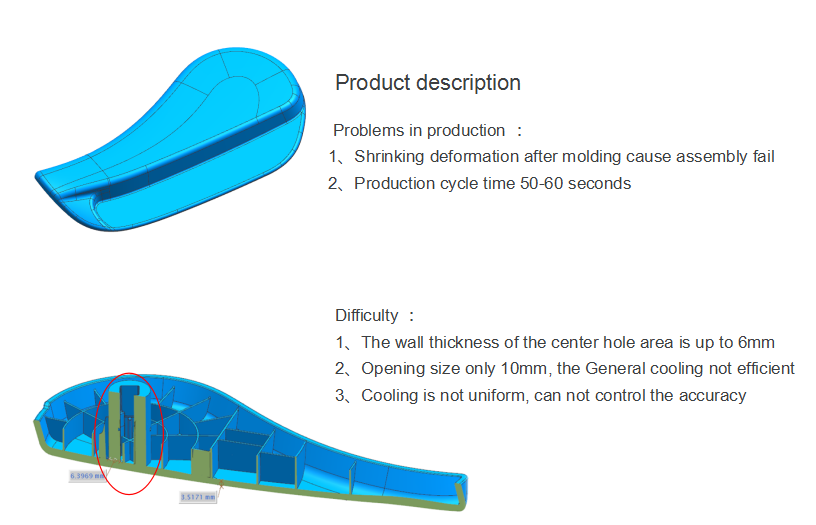

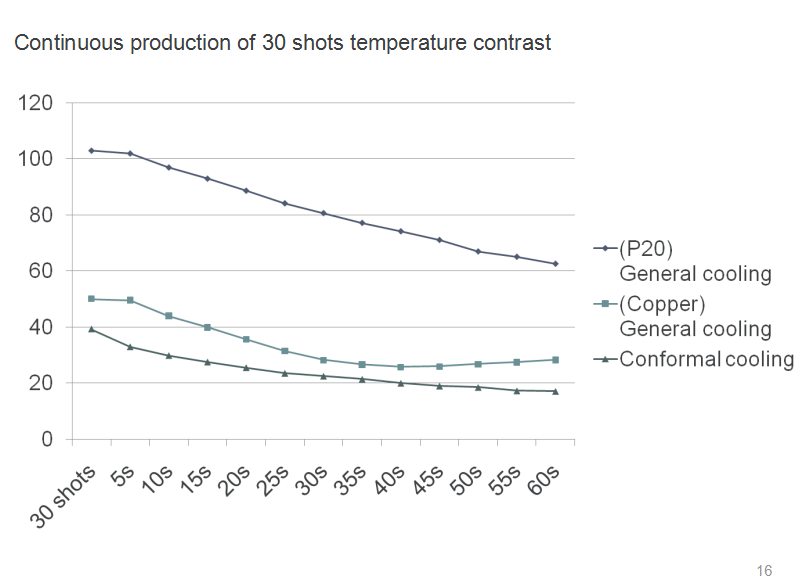

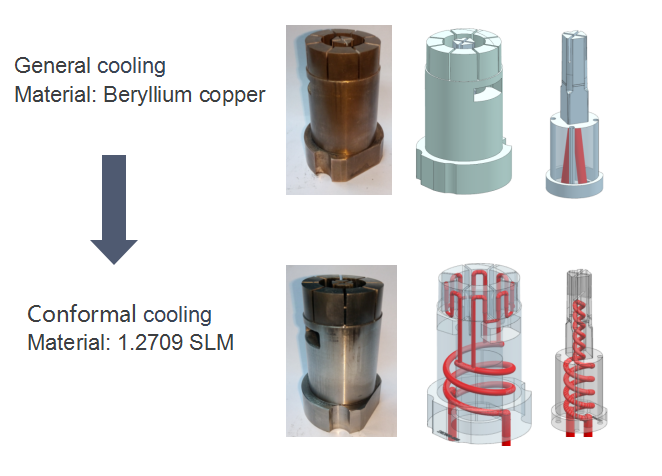

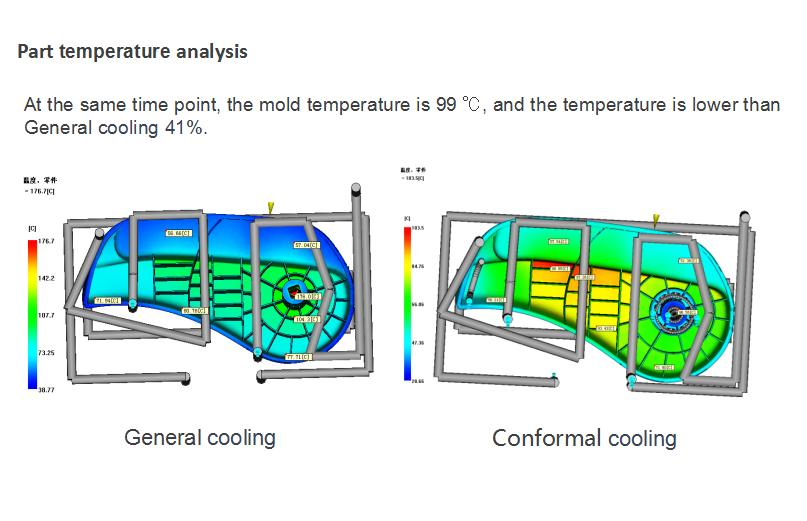

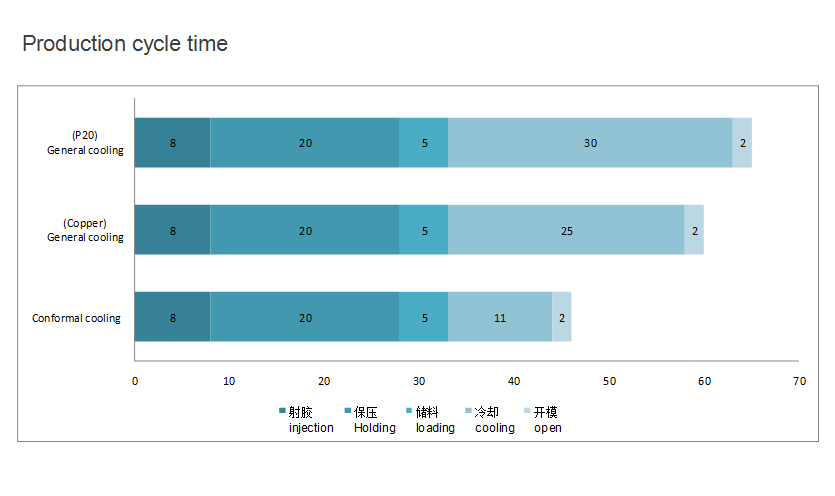

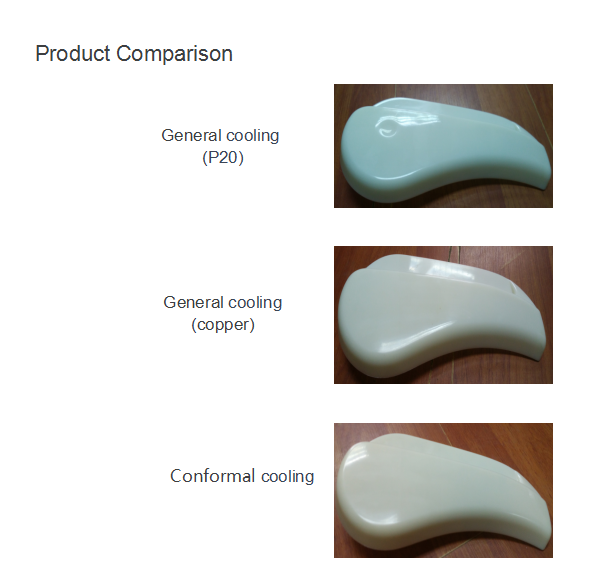

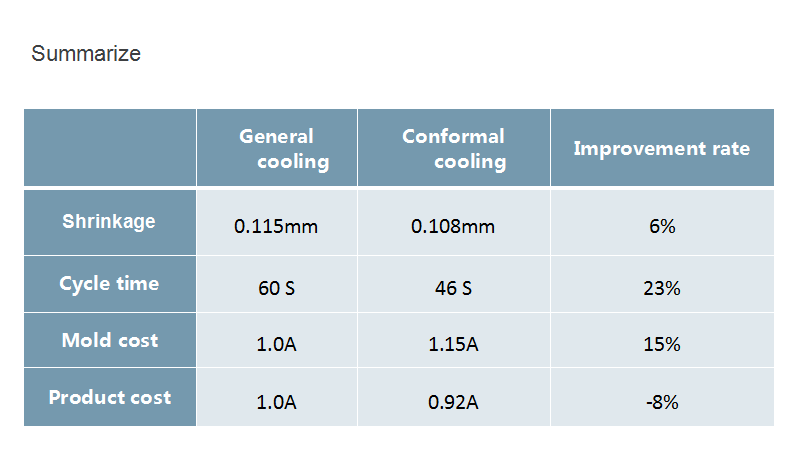

3.JIMEI Case
