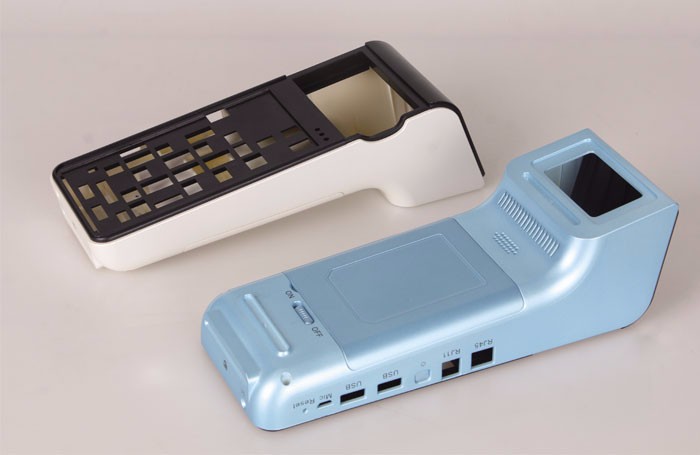

POS Machine Injection Mold
Mould Size : Middle-Large Size
Quality Guarantee : SO9001:2008 & ISO14001:2004
Lead Time : 25-60 days, on basis of mold complexity.
Electronic & electrical equipment Part general material:ABS、PC、PC+ABS etc.
Injection Mould Material: P20, H13,718,S136, 1.2311, 1.2738, NAK80, 2344, 2083 ect.
Mould cavity number: Single cavity, Multiple cavity ,interchangeable inserts cavities or one mould with different products
Runner system: Hot runner , Cold runner etc.，as per customers requirement and part structure
Main process: Milling, grinding, CNC, EDM, wire-electrode cutting,electrospark, lathe, etc
Surface treatment: VDI 3400 Code, SPI finish standard, MOLD-TECH, textured surface, polish etc.

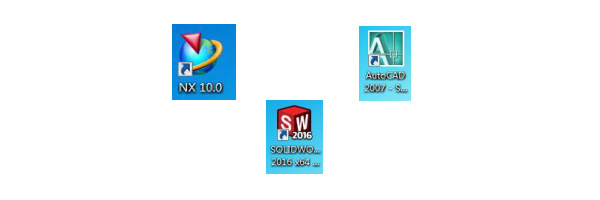

Software: UG/ Solidworks / Pro-E / Mouldflow/ Plastics Insight etc.
JIMEI engineers use mature CAD/CAM software to write tool path, and we can make fixture positioning processing for those high difficulty in shaping appearance parts.Our equipment can achieve a maximum speed of 24000 rpm. 3D files in the. Step or. Step format can be converted to. Igs for production at JIMEI. Designers and structural engineers in R & D department can create 3D mould structure drawing based on 2D and 3D drawings.
