3D Printing Technology

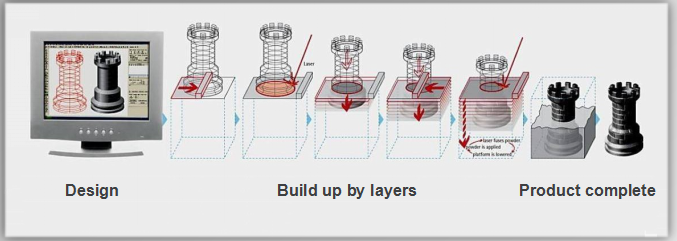

1. Working Principle:
3D printing is a new technology that using laser to melt the metal powder material, and the metal parts which are close to the complete density are formed directly by the layer stacking.It is not limited by the existing machining,and easily realize the design of complex conformal cooling.
Using laser to melt the metal powder material, and the metal parts which are close to the complete density are formed directly by the layer stacking.Not limited by the existing machining. Realization the design of complex conformal cooling

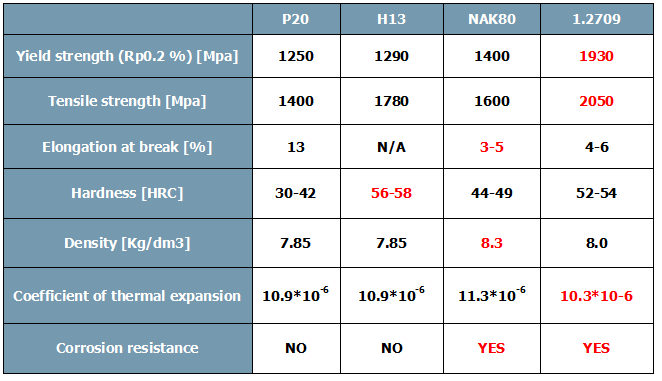

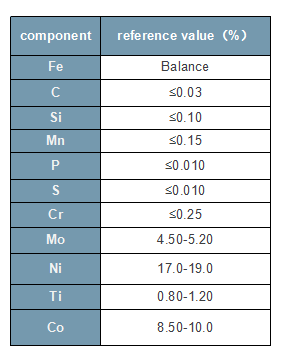

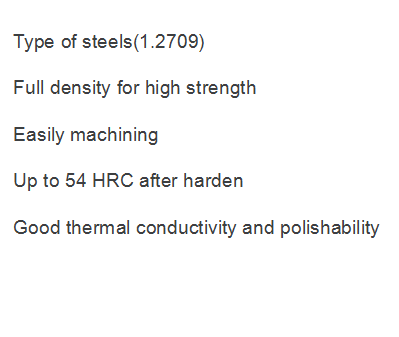

2. Material properties

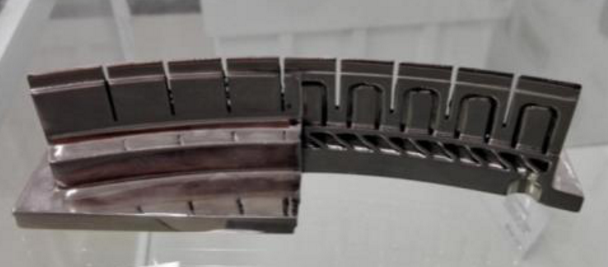

3. Build mold insert

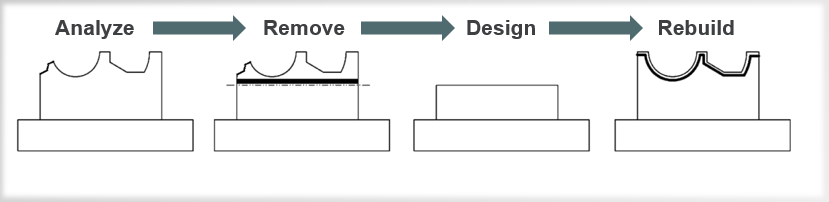

4. Repair & Transform
-
1. Location damage area and analysis
-
2. Remove damage area by wire cutting
-

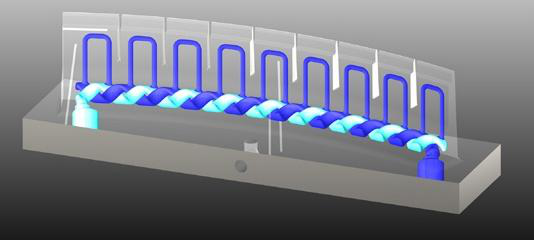

3. Design conformal cooling
-
4. Rebuild base on the remaining part
6. Major Advantage
(1).Cost Advantages
1. Product and mold design optimization can be carried out at the same time,
2. Shorten the processing time
3. Shorten injection cycle time , Reduce the production cost
(2).Product quality
1. Reduce residual stress, prevent the warpage
2. Keep the accuracy, preventing the deformation
3. Improve the product surface finish
